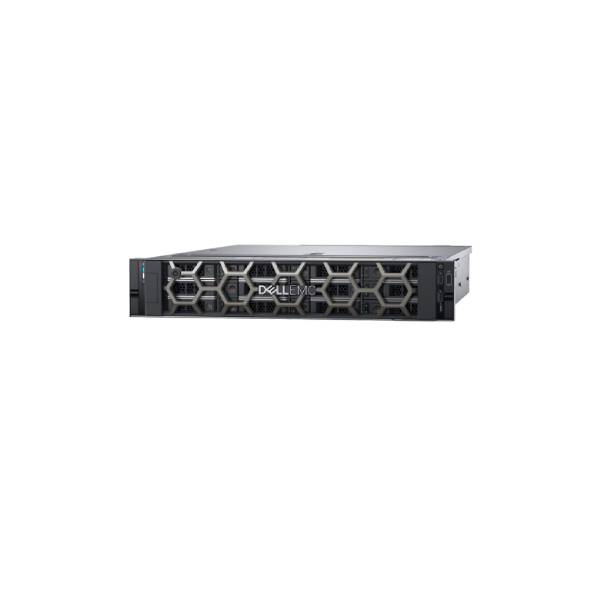

Dell PowerEdge R540 Server

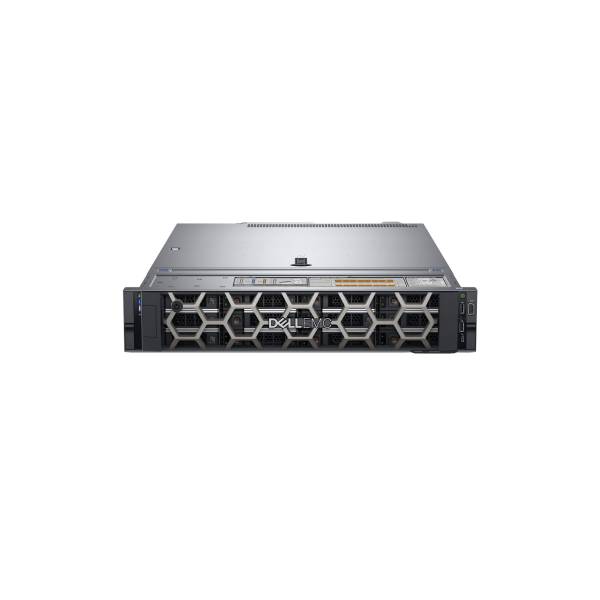

Dell PowerEdge R540 Server - Image 2
  1. Dell PowerEdge R540 Server
  2. Dell PowerEdge R540 Server - Image 2

Dell PowerEdge R540 Server

The Dell PowerEdge R540 Server delivers the ideal balance of resources and affordability to adapt to a variety of application demands. The PowerEdge R540 delivers the versatility and flexibility to power a variety of applications. With a balanced set of resources, expandability and affordability, the R540 adapts to the demands of the modern data center. Automatically optimize performance

Add to quote
Categories: ,

Description

Dell PowerEdge R540 Server

  • Up to two Intel® Xeon® Scalable processors, up to 20 cores per processor
  • 16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666 MT/s, 1TB* max
  • Front drive bays: Up to 12 x 3.5” SAS/SATA HDD max 168TB, Rear drive bays: Up to 2 x 3.5 SAS/SATA HDD max 28TB, Optional DVD-ROM, DVD+RW
  • Max depth: 707.74 mm (w/bezel), Max depth: 693.81 mm (w/o bezel)

Dell PowerEdge R540 Server Specifications

  • Base:
    PowerEdge R540 Server
  • Processor:
    Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 20 cores per processor
  • Memory:
    16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 1TB max
  • Fans:
    Up to six fans
  • Storage Controllers:
    Internal controllers: PERC H330, H730P, H740P, HBA330, Software RAID (SWRAID) S140
    Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
    External PERC (RAID): H840
    External HBAs (non-RAID): 12 Gbps SAS HBA
  • Drive Bays:
    Front drive bays: Up to 12 x 3.5” SAS/SATA HDD max 168TB
    Rear drive bays: Up to 2 x 3.5 SAS/SATA HDD max 28TB
    Optional DVD-ROM, DVD+RW
  • Sizing:
    Form Factor: 2U Rack Server
    Height: 86.8mm (3.41”)
    Width*: 434mm (17.08”)
    Depth*: 693.81mm (27.31”)
    Weight: 29.68kg (65.43lbs.)
    *Dimensions do not include bezel.
  • Bezel:
    Optional LCD or security bezel
  • Embedded/At-Server:
    iDRAC9
    iDRAC Direct
    iDRAC REST API with Redfish
    Quick Sync 2 BLE/wireless module
  • Consoles & Mobile:
    OpenManage Enterprise
    OpenManage Essentials
    OpenManage Mobile
    OpenManage Power Center
  • Integrations:
    OpenManage integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight, Red Hat® Ansible® Modules
  • Connections:
    Nagios® Core and Nagios® XI, IBM Tivoli® Netcool/OMNIbus
    Micro Focus Operations Manager I
  • Tools:
    Dell EMC Repository Manager
    Dell EMC Update Package
    Dell EMC System Update
    Dell EMC Server Update Utility
    iDRAC Service Module
    OpenManage Server Administrator
    OpenManage Storage Services
  • Power Supplies:
    Platinum 495W, 750W, 1100W
    Hot plug power supplies with full redundancy option
  • Security:
    TPM 1.2/2.0, TCM 2.0 optional
    Cryptographically signed firmware
    Silicon Root of Trust
    Secure Boot
    System Lockdown (requires OpenManage Enterprise)
    System Erase
  • I/O & Ports:
    Network options: 2 x 1GbE LOM + (optional) LOM Riser 2 x 1GbE or 2 x 10GbE SFP+ or 2 x 10GbE BaseT
    Front: 1 x Dedicated iDRAC Direct, 1 x USB 2.0, 1 x Video
    Rear: 1 x Dedicated iDRAC, 1 x Serial, 2 x USB 3.0, 1 x Video
    Optional Riser: Non-rear storage config: 1xFH/FL + 1xHH/HL (2U Right riser) slots + 3 HH/HL slots
    Rear storage config: 1xHH/HL (1U Left Riser) + 1xHH/HL (1U Right risers) slot or 1xHH/HL (1U Left Riser) + 1x FH/HL (1U Right riser)
  • Supported Operating Systems:
    Canonical® Ubuntu® Server LTS
    Citrix® XenServer®
    Microsoft Windows Server® LTSC with Hyper-V
    Red Hat® Enterprise Linux
    SUSE® Linux Enterprise Server
    VMware® ESXi
