Description

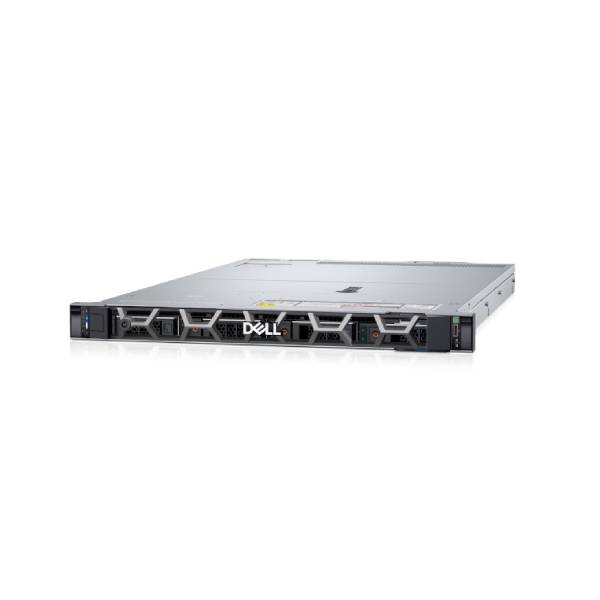

Dell PowerEdge R660xs 1U 16th Generation Rack Server
- Unlock unparalleled compute power with our latest family of robust, secure servers meticulously crafted to propel automation and innovation. Whether you’re scaling up operations or pioneering new ventures,
- The Dell PowerEdge R660xs is meticulously designed to seamlessly integrate into your existing infrastructure while providing the essential performance features needed to bolster your enterprise applications.
- The Dell PowerEdge R660xs stands out as the optimal choice for striking the perfect balance in performance within an air-cooled chassis, tailored for the most widely used IT applications. With the ability to accommodate up to two 5th Generation Intel® Xeon® Scalable processors, each boasting up to 32 cores per socket, the server ensures enhanced processing capabilities for faster and more efficient performance.
- PowerEdge and Open Manage solutions seamlessly integrate tools throughout the portfolio, empowering organizations to automate the server lifecycle, optimize operations, and scale efficiently.
Dell PowerEdge R660xs 1U 16th Generation Rack Server Specifications
| Processor
Up to two 5th Generation Intel Xeon Scalable processor with up to 28 cores and 4th Generation Intel Xeon Scalable processor with up to 32 cores per processor Operating System Canonical Ubuntu Server LTS Memory
16 DDR5 DIMM slots, supports RDIMM 1.5 TB max, speeds up to 5200 MT/s, Supports registered ECC DDR5 DIMMs only
Memory Type
RDIMM
Maximum RAM
RDIMM 1.5 TB max
Storage
Front bays:
0 drive bay Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TBRear bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB Storage Controllers
Internal Controllers:
PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355iExternal Controllers: External HBA (non-RAID) – HBA355e |
Security
\Cryptographically signed firmware
Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ Management
Embedded / At-the-Server:
iDRAC9 iDRAC Service Module iDRAC Direct Quick Sync 2 wireless module Consoles
OpenManage Enterprise
OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin Mobility
openM-anage Mobile
OpenManage Integrations
BMC Truesight
Microsoft® System Center RedHat® Ansible® Modules VMware® vCenter and vRealize Operations Manager OpenManage connectionsIBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition Micro Focus® Operations Manager Nagios® Core Nagios® XI Power Supplies
1800 W Titanium 200—240 VAC or 240 VDC
1400 W Platinum 100—240 VAC or 240 VDC 1400 W Titanium 277 VAC or HVDC (HVDC stands for HighVoltage DC, with 336V DC) 1100 W Titanium 100—240 VAC or 240 VDC 1100 W -(48V — 60V) DC 800 W Platinum 100—240 VAC or 240 VDC 700 W Titanium 200—240 VAC or 240 VDC 600 W Platinum 100—240 VAC or 240 |
Ports
Network Options 1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system. 1 x Managemnet Interface Card (MIC) to support Dell Data Processing Unit (DPU card) (optional) Note: The system allows either LOM card or MIC card to be installed in the system. Front Ports
1 x Dedicated iDRAC Direct micro-USB
1 x USB 2.0 1 x VGA Rear Ports
1 x USB 2.0
1 x Serial (optional) 1 x USB 3.0 1 x Ethernet 1 x VGA Internal Ports
1 x USB 3.0 (optional)
Slots
PCIe
1 CPU Configuration: Up to 2 PCIe slots (1 x16 Gen4 + 1 x8 Gen5) 2 CPU configuration: Up to 3 PCIe Gen4 slots (1 x16 Gen4 + 2 x8 Gen4) or up to 2 PCIe Gen5 slots (1 x16 Gen5 + 1 x8 Gen5) Bezel
Optional security bezel
Form Factor
1U rack server
Dimensions & Weight
Height – 42.8 mm (1.68 inches)
Width – 482 mm (18.97 inches) Depth with Bezel: 748.79 mm (29.85 inches) Depth without Bezel: 712.95 mm (28.05 inches) |
