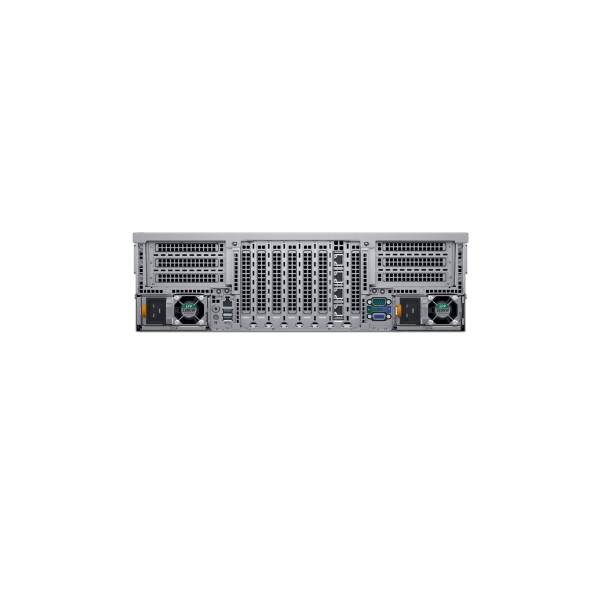

Dell PowerEdge R940 Server

The Dell PowerEdge R940 Server is designed to power your mission-critical applications and real-time decisions. With four sockets and up to 12 NMVe drives, the Dell R940 provides scalable performance in just 3U. With automatic workload tuning, configuration is quick. Combined with up to 6TB of memory and 13 PCIe Gen 3 slots the Dell R940 has all the resources to maximize application performance and scale for future demands.

Description

Dell PowerEdge R940 Server

  • Up to four Intel® Xeon® SP, up to 28 cores
  • Front drive bays: Up to 24 x 2.5” SAS/SATA (HDD/SSD) with up to 12 NVMe PCIe SSD, max 122TB
  • 48 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933MT/s, 6TB max
    Up to 12 NVDIMM, 192GB Max
    Supports registered ECC DDR4 DIMMs only
  • Form factor: Rack (3U) Chassis depth: 777.05 mm

Dell PowerEdge R940 Server Specifications

  • Base:
    PowerEdge R940 Server
  • Processor:
    Up to four Intel® Xeon® SP, up to 28 cores
  • Memory:
    48 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933MT/s, 6TB max
    Up to 12 NVDIMM, 192GB Max
    Supports registered ECC DDR4 DIMMs only
  • Storage Controllers:
    Internal controllers: PERC S140, H330, H740P
    Boot optimized Storage Subsystem
    External HBAs (RAID): H840
    External HBAs (non-RAID): 12 Gbps SAS HBA
  • Drive Bays:
    Front drive bays: Up to 24 x 2.5” SAS/SATA (HDD/SSD) with up to 12 NVMe PCIe SSD, max 122TB
  • Power Supplies:
    Platinum 1100W, 1600W, 2000W, 2400W, 336-380VDC 1100W, Gold 48VDC 1100W
    Hot plug power supplies with full redundancy option
    8 hot plugs fans with full redundancy
  • Embedded Management:
    IPMI 2.0 compliant
    iDRAC9 with Life cycle Controller (Express, Enterprise)
    Quick Sync 2 wireless module optional
  • Bezel:
    Optional LCD bezel
  • OpenManage™ Software:
    OpenManage Enterprise
    OpenManage Essentials
    OpenManage Mobile
    OpenManage Power Center
  • Integrations:
    Microsoft® System Center,
    VMware® vCenter™,
    BMC Software (available from BMC)
  • Connections:
    Nagios Core & Nagios XI,
    Oracle Enterprise Manager,
    HP Operations Manager,
    IBM Tivoli Netcool/OMNIbus
    IBM Tivoli® Network Manager,
    CA Network and Systems Management
  • Dimensions:
    Form Factor: 3U Rack Server
    Chassis Depth: 777.05mm
  • Security:
    TPM 1.2/2.0 optional
    Cryptographically signed firmware
    Secure Boot
    System Lockdown
    Secure Erase
  • I/O & Ports:
    Network Daughter Card Options
    4x 1Gb, 4x 10Gb, 2x 10Gb+2x 1Gb, or 2x 25Gb
    Front ports: Video, 2 x USB 3.0,
    dedicated IDRAC Direct USB
    Rear ports: Video, serial, 2 x USB 3.0,
    dedicated iDRAC network port
    Video card: VGA
    Up to 13 x Gen3 slots, (3 x8 + 10 x16)
  • Supported Operating Systems:
    Canonical® Ubuntu® LTS
    Citrix® XenServer®
    Microsoft Windows Server® with Hyper-V
    Red Hat® Enterprise Linux
    SUSE® Linux Enterprise Server
    VMware® ESXi
