Description

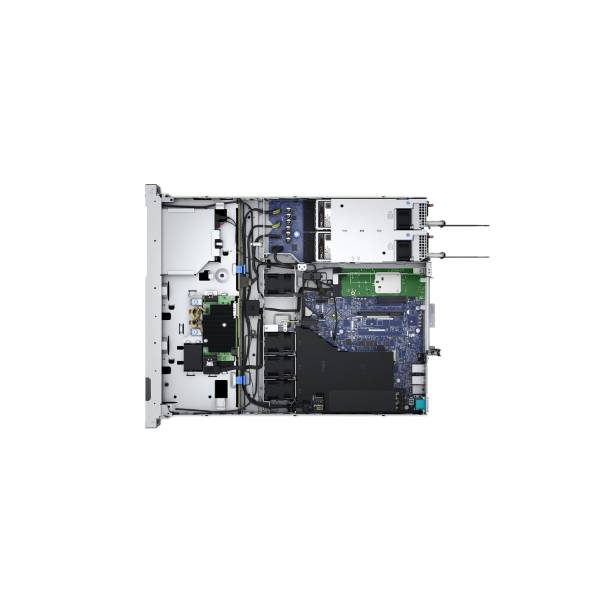

Dell PowerEdge R350 1U Rack Server

The PowerEdge R350, featuring an Intel® Xeon® E-2300 processor, offers heightened performance, ideal for demanding productivity and data-intensive applications.
The PowerEdge R350 is a cost-effective, easily manageable one-socket rack server, crafted to expedite business growth for organizations in need of enterprise-class features.
The Dell Technologies OpenManage systems management portfolio simplifies your IT environment by providing tools and solutions for discovering, monitoring, managing, updating, and deploying your PowerEdge infrastructure.
PowerEdge and OpenManage solutions seamlessly integrate tools throughout the portfolio, empowering organizations to automate the server lifecycle, optimize operations, and scale efficiently.
PowerEdge servers are made with a cyber resilient architecture that builds in security at every phase of the product lifecycle, from the silicon root of trust and secured component verification, to signed firmware and drift detection, to BIOS recovery.

Base:
PowerEdge R350 Server
Form Factor:
1U Rack Server
Processor:
One Intel Xeon E-2300 series processor with up to 8 cores or one Intel Pentium processor with up to 2 cores
Dimensions:
Height – 42.8 mm (1.69 inches)
Width – 482 mm (18.98 inches)
Depth (without bezel) – 585.3 mm (23.04 inches)
Depth (with bezel) – 598.94 mm (23.58 inches)
Power Supplies:
600W Platinum 100-240 VAC or 240 VDC redundant, hot swap
Fans:
Up to four fans with full redundancy
Cooling Options:
Air cooling
Bezel:
Optional LCD or Security Bezel
Memory:
Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s
Supports unregistered ECC DDR4 DIMMs only
Note: For Pentium processor, the maximum memory speed is 2666 MT/s
Drive Bays:
Front Bays:
Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 128 TB
Embedded Management:
iDRAC9
iDRAC Service Module
iDRAC Direct
iDRAC RESTful API with Redfish
OpenManage™ Software:
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin
Mobility:
OpenManage Mobile

Integrations and Connections:
OpenManage Integrations:
BMC Truesight
Microsoft® System Center
Red Hat® Ansible® Modules
VMware vCenter and vRealize Operations ManagerOpenManage Connections:
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI
Security:
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TCM 2.0 optional
Embedded NIC:
2 x 1 GbE LOM
Ports:
Front Ports:
1 x USB 2.0
1 x iDRAC Direct (Micro-AB USB) portRear Ports:
1 x USB 2.0
1 x iDRAC Ethernet Port
1 x USB 3.0
2 x Serial Port
1 x VGAInternal:
1 x USB 3.0 (optional)
2 x PCIe Gen4 slots:
1 x8 Gen4 (x16 connector) low profile, half length
1 x8 Gen4 (x8 connector) low profile, half length
Operating Systems and Hypervisors:
Canonical® Ubuntu® Server LTS
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
Citrix Hypervisor
